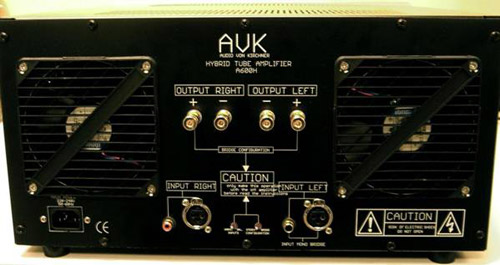

REAR

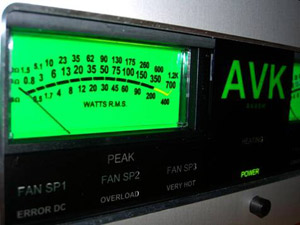

V.U. METERS

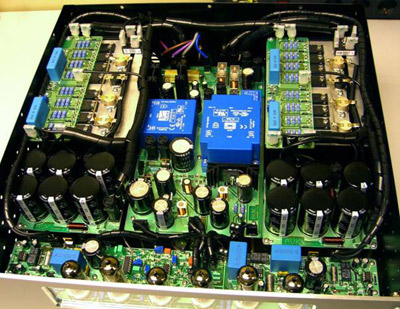

INTERNAL ARCHITECTURE
![]()

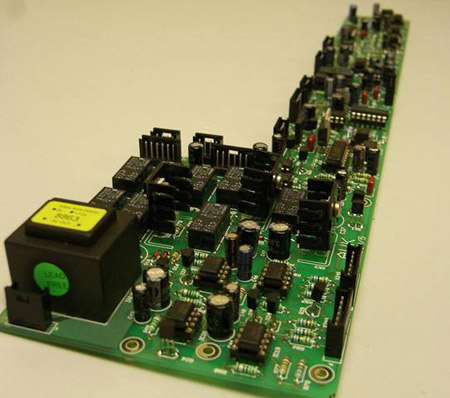

The sophisticated A600H power stage control circuit controls tube and final transistor temperature, to ensure all these components always work in optimum conditions giving the best quality sound, protecting these costly components from overload and extreme working conditions. | ![]()
The resistors that amplify the audio signals are the most precise available on the market (0.1%). They are used in electronic equipment in the aeronautical and aerospace satellites, and figure zero capacitance and inductance, undetectable by the most sensitive analytical equipment in the world. |
![]()

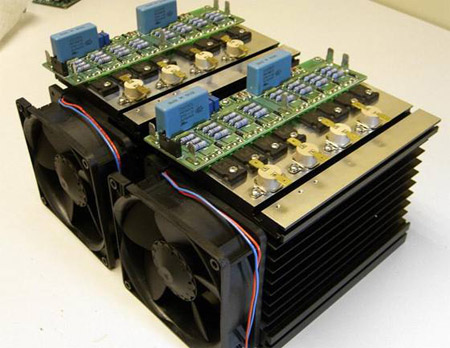

The A600H, a class A2 (AVK) device deliver such high power levels and dynamics that the cooling and high current and voltage controls need these strong power units in the final stage, which are cooled with variable forced ventilation, so that the output components work at the correct temperatures at all times, controlled by the control board. |
![]()

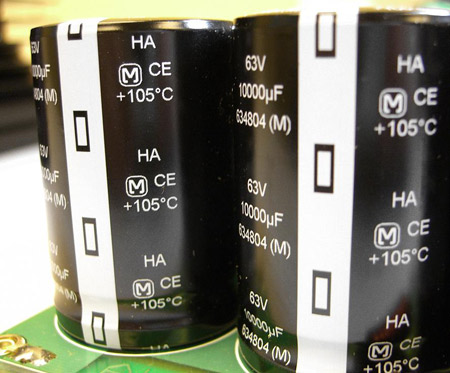

All the filter feeding and peripheral capacitators are 105ºC for higher quality and durability. |
![]() All nodes and face-to-face connections on our printed circuits are treated exclusively with gold to achieve zero resistance contact and solder joints and optimum reliability in soldering and connections in our circuits. |
![]()

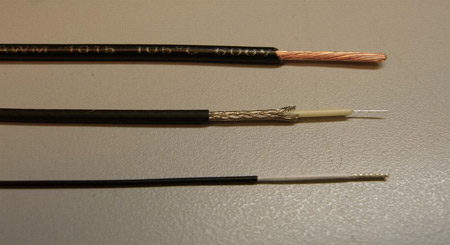

The cable used in our devices is manufactured using the best available materials. The technical specifications from the manufacturers of these materials state that they are used in the aerospace industry (see www.farnell.com/datasheets/9262.pdf ). |
FREQUENCY RESPONSE : |
4Hz – 275000Hz (+0, -3dB) (8 Ohms) |
TOTAL HARMONIC DISTORTION :: |
0’09% (Maximum output) |
SIGNAL NOISE RATIO : |
>105dB (input unbalanced) |
MAXIMUM INPUT LEVEL : |
Balanced : 10V RMS |
INPUT IMPEDANCE : |
Balanced : 47k Ohms |
MAXIMUM POWER OUTPUT : |
STEREO MODE : BRIDGE MONO MODE: |
OUTPUT IMPEDANCE : |
STEREO MODE : MONO BRIDGE MODE : |
CONSUMPTION : |
85 Watts (Minimum power) 1520 Watts (Maximum power) |
DIMENSIONS : |
Width : 430mm |
WEIGHT : |
41 Kg. |
